工商业储能系统
ESS-TRENE 1MWh
-
249kW-500kW | 1044 kWh
SolaX 储能系统 (ESS) - TRENE 是一款先进的液冷解决方案，专为满足大规模储能需求而设计。该系统拥有 1044 kWh 的独立容量和 249kW-500kW 的输出功率，是一款用途广泛的系统，非常适合工厂等场所使用。TRENE 液冷储能系统可轻松扩展至数兆瓦时，满足各种不同的能源需求。
产品优势
SolaX TRENE 储能系统采用先进的液冷技术，通过将电池温差控制在 3°C 以下，确保最佳性能。配备坚固耐用的 314Ah 磷酸铁锂电池，保证了长期可靠性。安全是重中之重，系统配备了四级防火保护系统。TRENE 由 SolaXCloud 智能能源管理系统提供支持，可实现实时监控和轻松操作，是工商业储能解决方案的理想之选。
安全保障

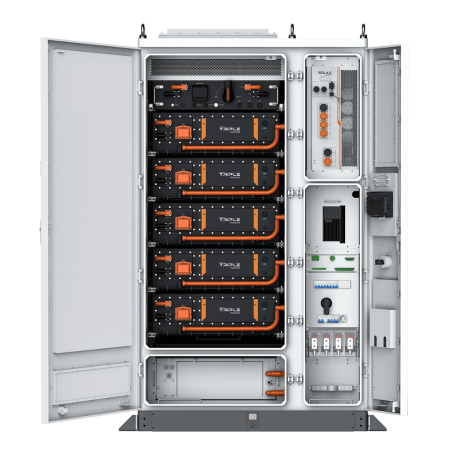

电气柜与电池柜分离设计，防止热失控风险
多层次保护系统，全面确保电池安全
IP55户外柜体，并可选配C5防腐蚀处理
智能设计
全部预组装，减少现场工作量，加速调试流程
高效散热设计，延长电池寿命并提升系统放电能力
支持1小时内完成备件更换，减少停机时间
高效性能
适用于大规模和高需求的储能应用场景
无缝支持光伏集成、并网/离网功能及智能能量管理
智能液冷温控系统，提升效率并延长电池循环次数
灵活适应

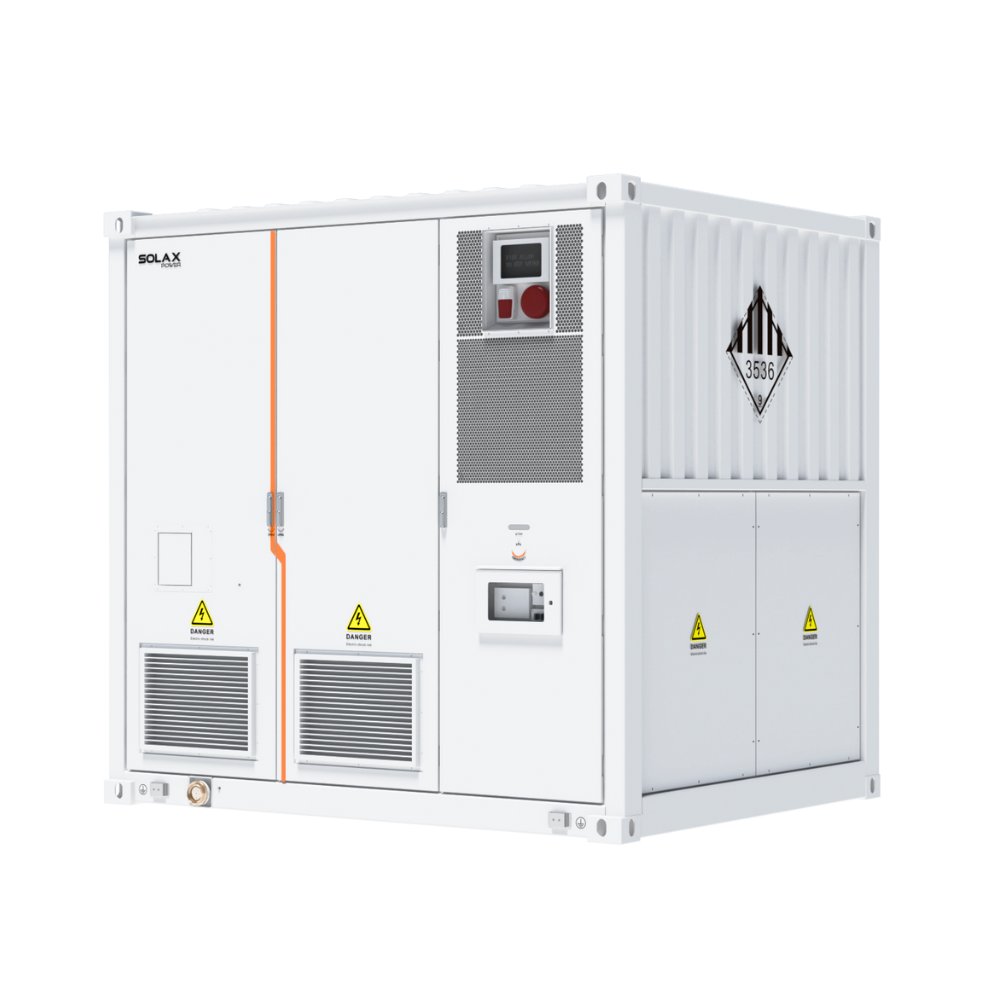

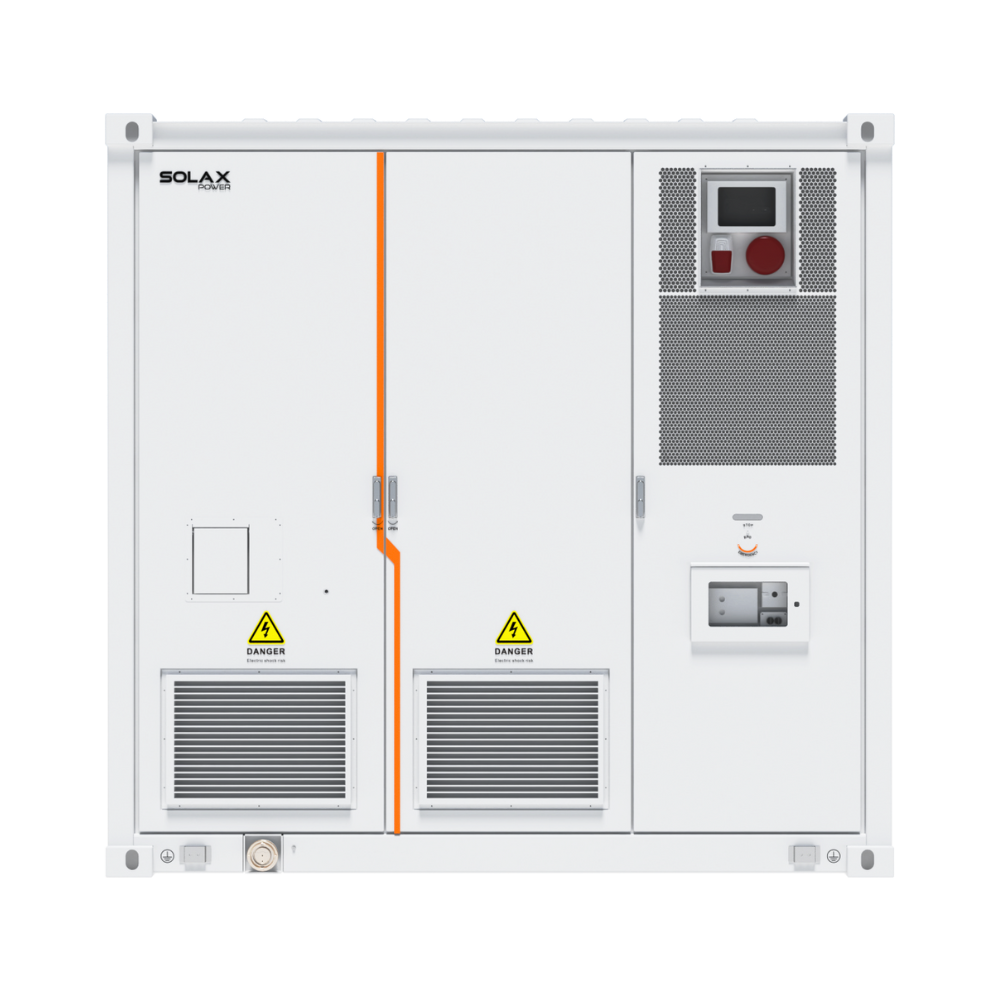

支持多种交付形式，包括柜内安装、集装箱化解决方案及一体化方案
配备本地控制及远程监控平台
快速系统恢复能力，有效降低运维成本
Product Parameters
-
TRENE-P249B1044L-4H-
AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P250B1044L-4H
-
AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P499B1044L-2H
-
AC SIDE (ON-GRID)
Rated AC power 499.6 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P500B1044L-2H
-
AC SIDE (ON-GRID)
Rated AC power 500kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P249B1044L-4H
-
AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P250B1044L-4H
-
AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
